JRLB 48 - Pneumatic lifting bag
Max. lifting capacity: 48 t
Product number:
31 R48 470-RLB
Weight:
17.8 kg
Description
Product information "JRLB 48 - Pneumatic lifting bag"

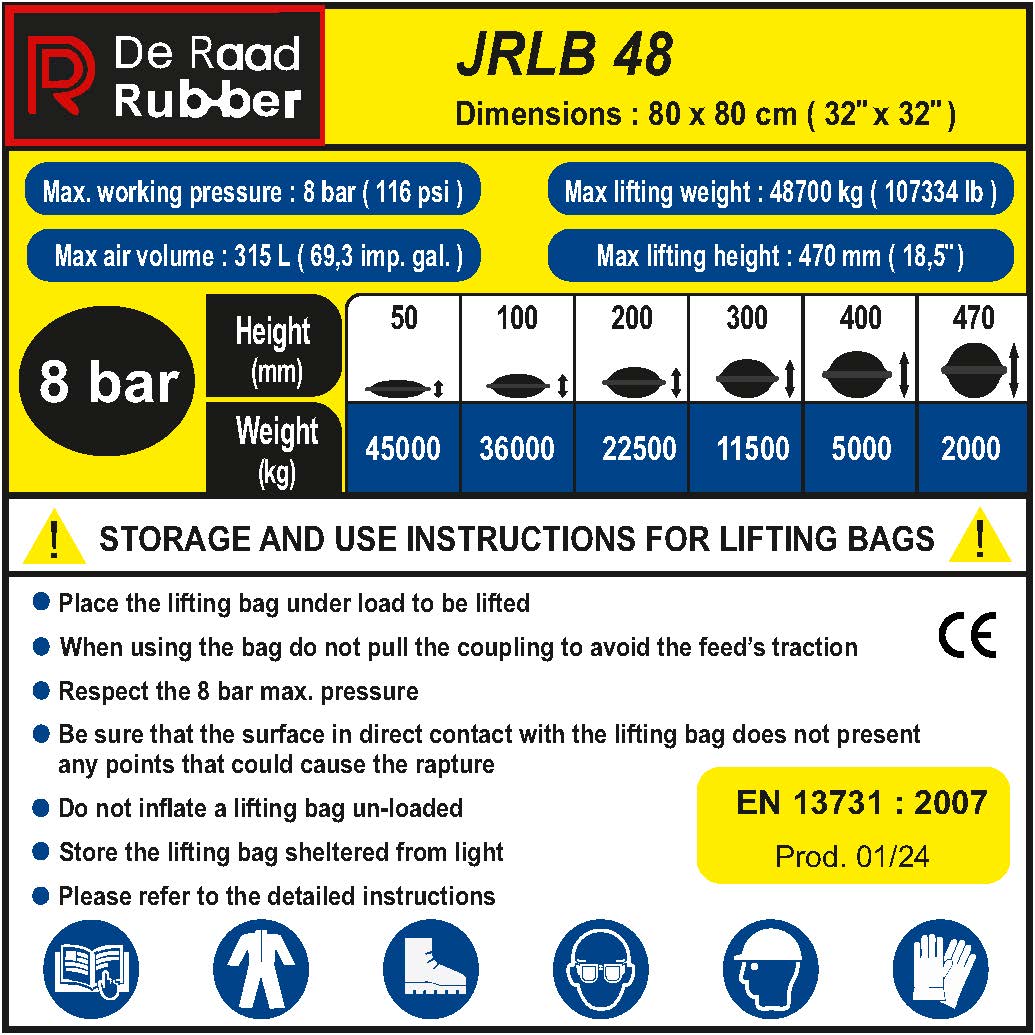

Please note that the surface and also the load capacity will change in
inflating condition (see drawing and table).
Use:
• Fits to every coupling
• Low insertion height: 25 mm
• Precise adjustment of lifting height
• Easy & quick to set up
Safety:
• Progressive & smooth lifting
• Safety and performance requirements according to DIN EN 13731 standards
• Margin of safety factor: >4
Handling:
• Bags equipped with handles
• Light weight: Easy to carry
Properties
| Air capacity (l): | 315 |
|---|---|
| Dimensions LxW (mm): | 800 x 800 |
| Fitting of screw thread: | 1/4" - 18 NPTF |
| Max. lifting capacity (kg): | 48 700 |
| Max. stroke (mm): | 470 |
| Pressure test (bar): | 12 |
| Thickness empty* (mm): | 25 |
| Weight (kg): | 17,8 |
| Working pressure (bar): | 8 |
