JHU 2002 - Aluminium cylinders
Height: 174 mm
Load capacity: 20 t
Product number:
32 020 050-EZU
Weight:
3 kg
Description
Product information "JHU 2002 - Aluminium cylinders "
- Load capacity: 20 t
- Working pressure: 700 bar
- Sturdy construction for high demands
- Light weight, great performance
- Surface hard chrome plated
- Integrated return spring provides quick retraction

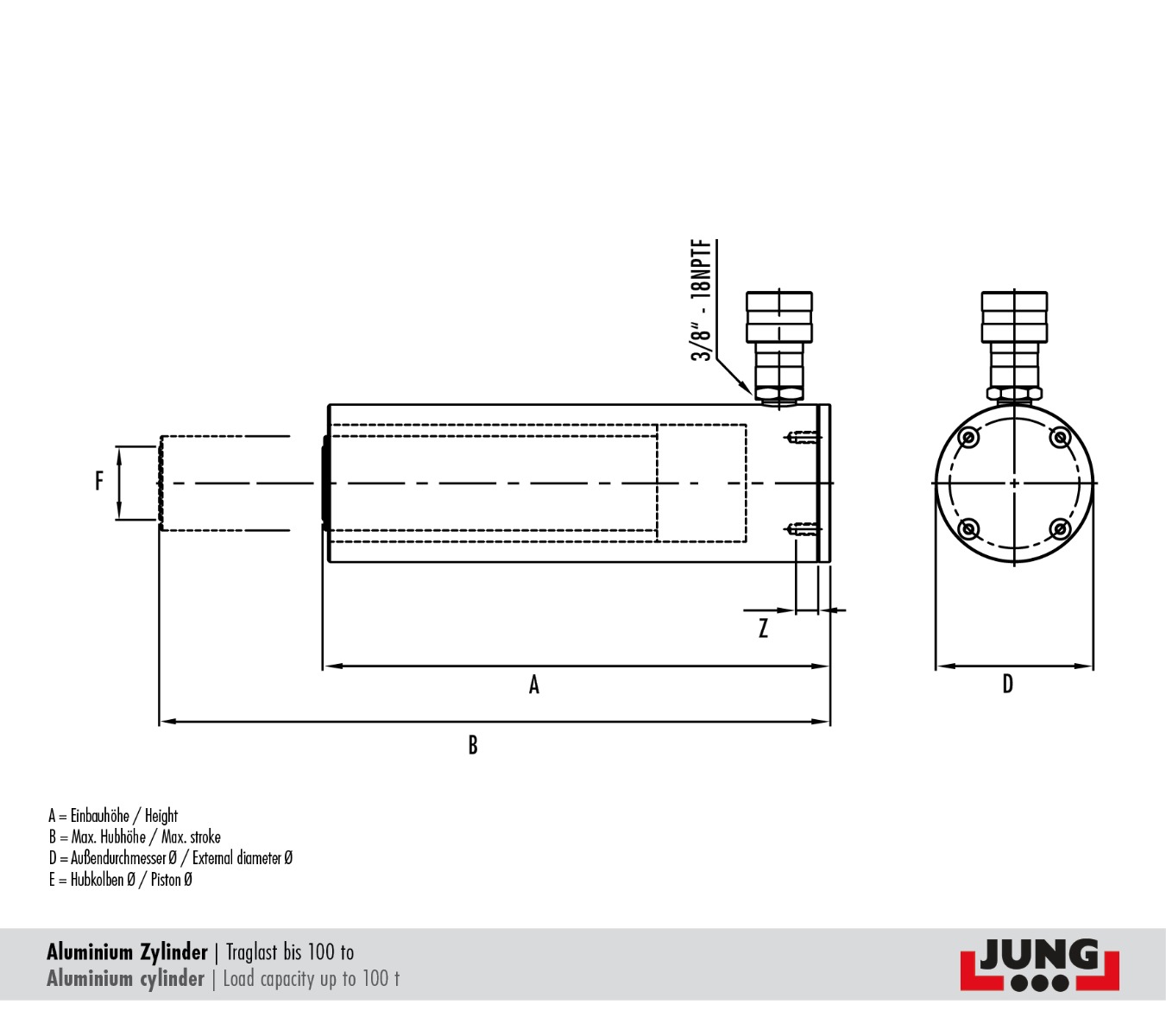

Properties
| Cylinder volume (l): | 0,155 |
|---|---|
| Depth of screw thread: | 12 |
| External diameter: | 85 |
| Fitting of screw thread: | 3/8" - 18 NPTF |
| Height (mm): | 174 |
| Load capacity (kg): | 20 000 |
| Max. stroke (mm): | 224 |
| Piston (mm): | 39,5 |
| Saddle (cm2): | 31,17 |
| Stroke (mm): | 50 |
| Weight (kg): | 3 |
