JHLN 5502 - Lock nut cylinders
Height: 164 mm
Load capacity: 48,9 t
Product number:
32 050 050-HLN
Weight:
15.4 kg
Description
Product information "JHLN 5502 - Lock nut cylinders "
- Load capacity: 48,9 t
- Working pressure: 700 bar
- Single acting cylinder with mechanical safety lock nut
- Designed to support loads without hydraulic pressure
- Overflow port prevents cylinders from overtravel
- Solid steel cylinder body

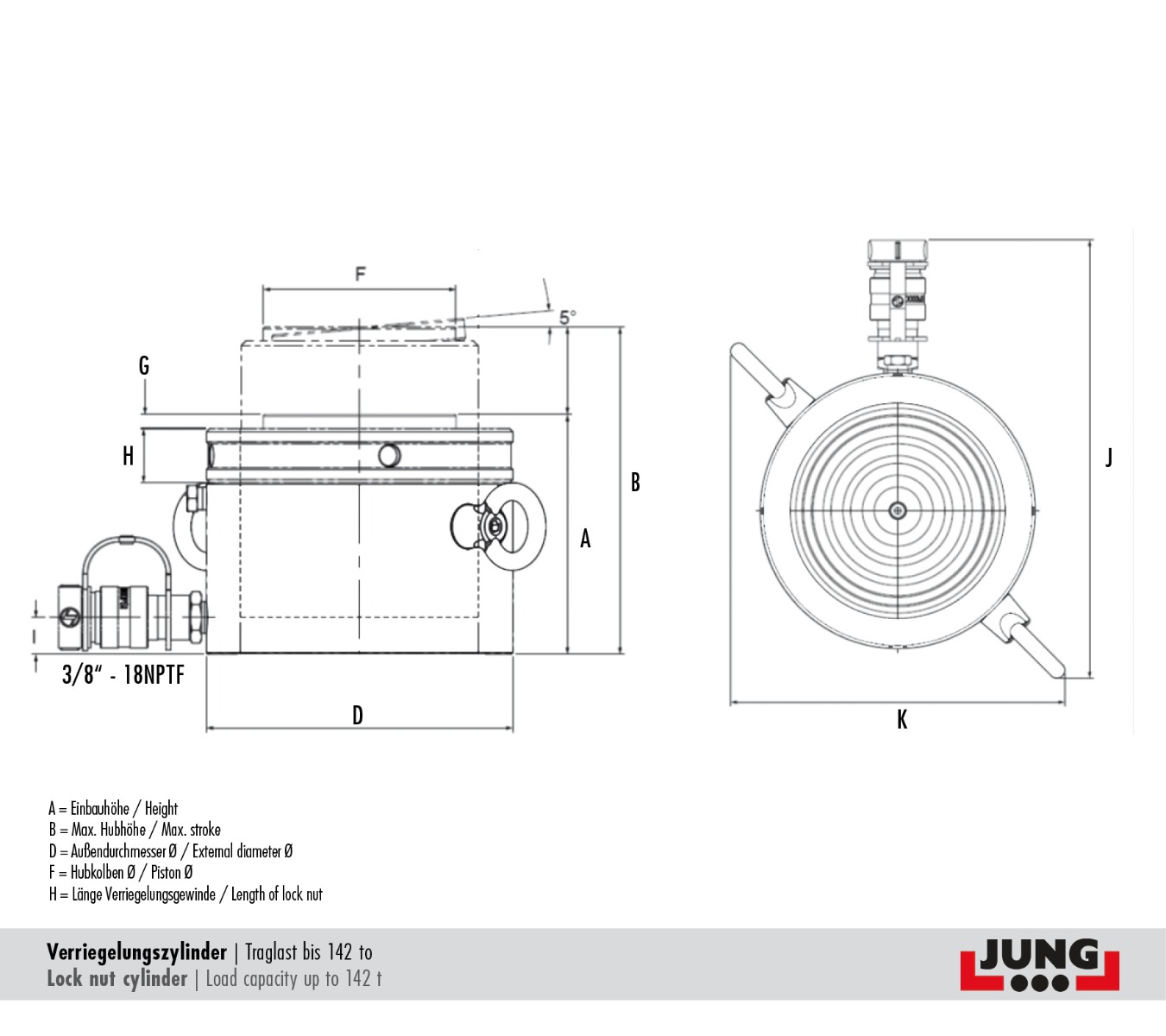

Properties
| Cylinder volume (l): | 0,35 |
|---|---|
| External diameter: | 125 |
| Fitting of screw thread: | 3/8" - 18 NPTF |
| Height (mm): | 164 |
| Length lock nut: | 36 |
| Load capacity (kg): | 48 900 |
| Max. stroke (mm): | 214 |
| Piston (mm): | 71 |
| Saddle (cm2): | 70,9 |
| Stroke (mm): | 50 |
| Weight (kg): | 15,4 |
