JGDR 80 Ss - Leveling castor - Ratchet version
Ratchet
version
Bore hole: Rectangular mounting plate
Load capacity: 500 kg
Product number:
35 101 750-S
Weight:
1.1 kg
Description
Product information "JGDR 80 Ss - Leveling castor - Ratchet version"
FOOT MASTER® Leveling castors
- Load capacity 500 kg
- Central thread bore
- The corresponding fastening material is included
- Ratchet adjustment
- White housing

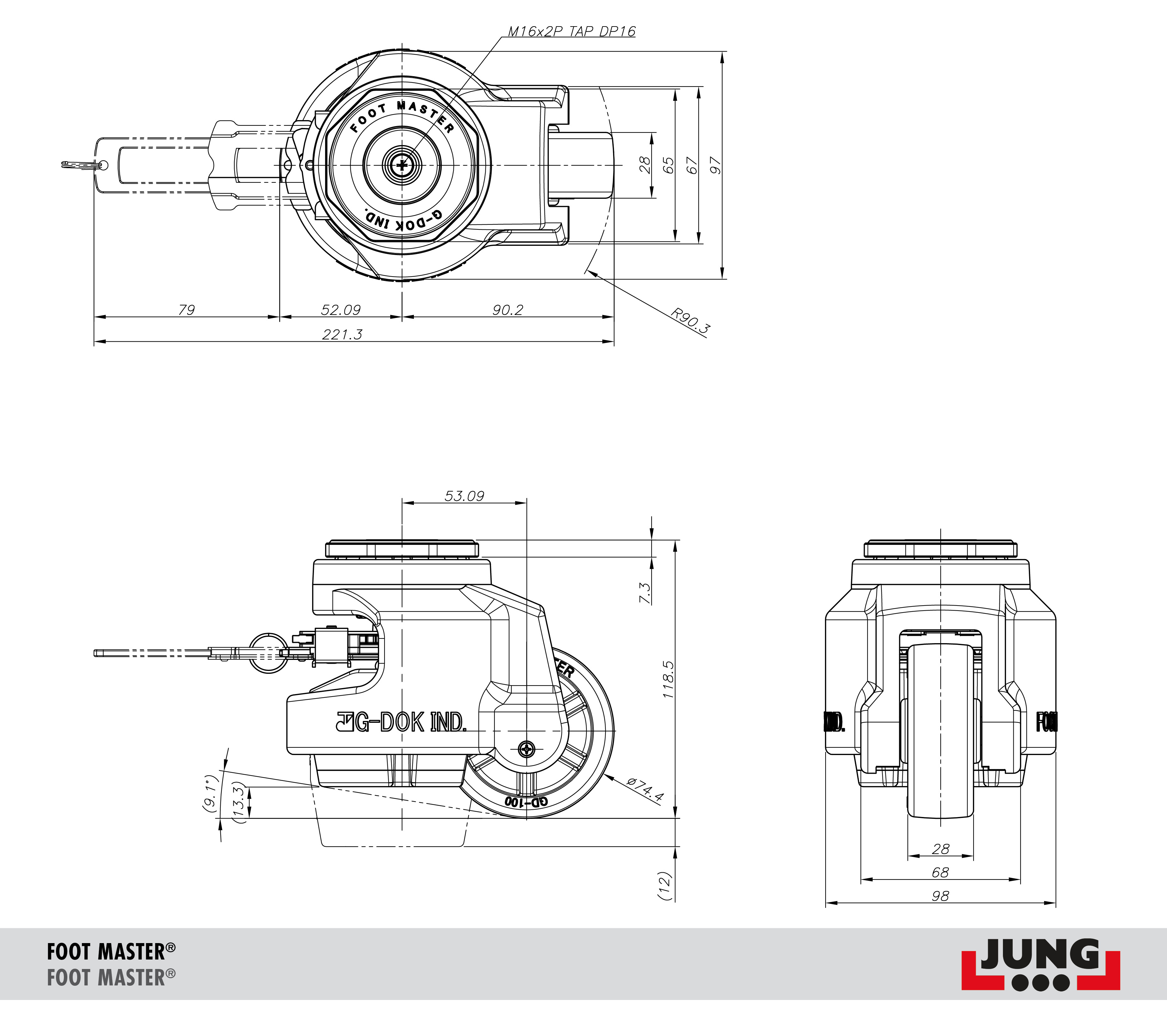

Properties
| Distance outer edge wheel to center top plate (mm): | 90,2 |
|---|---|
| Height (mm): | 118,5 |
| Length (mm): | 221,3 |
| Load capacity (kg): | 750 |
| Max. gradient angle: | 9,1° |
| Recommended load for four castors: | 1 500 |
| Screw thread (mm): | M16 x 2,0 |
| Stroke (mm): | 12 |
| Wheel Ø x width (mm): | 74,4 |
| Width (mm): | 97 |
